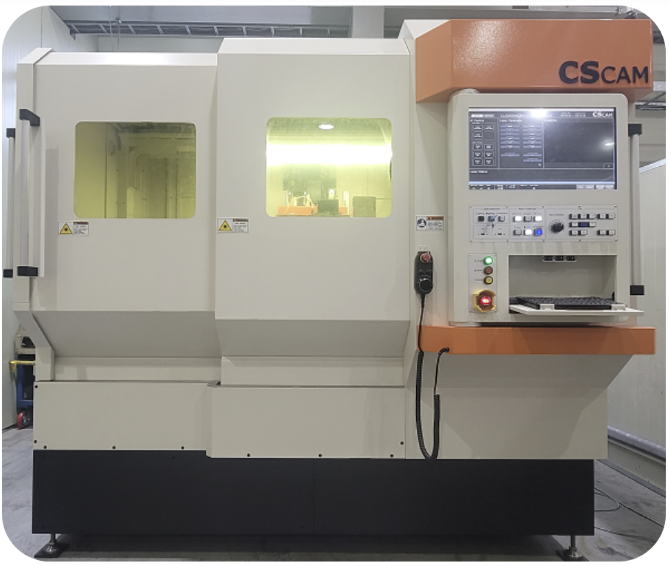

LASER MICRO ENGRAVING M/C (5AXIS)
Complex shape machining possible with 5-axis machine (X, Y, Z, B, C)
High productivity in large work area (Ø1000)
Precision machining with nano pulse laser (20W~100W)
High productivity in large work area (Ø1000)
Precision machining with nano pulse laser (20W~100W)
Details
5-axis laser micro-engraving and texturing equipment.
1. CSCAM’s self-developed machine and CAM system

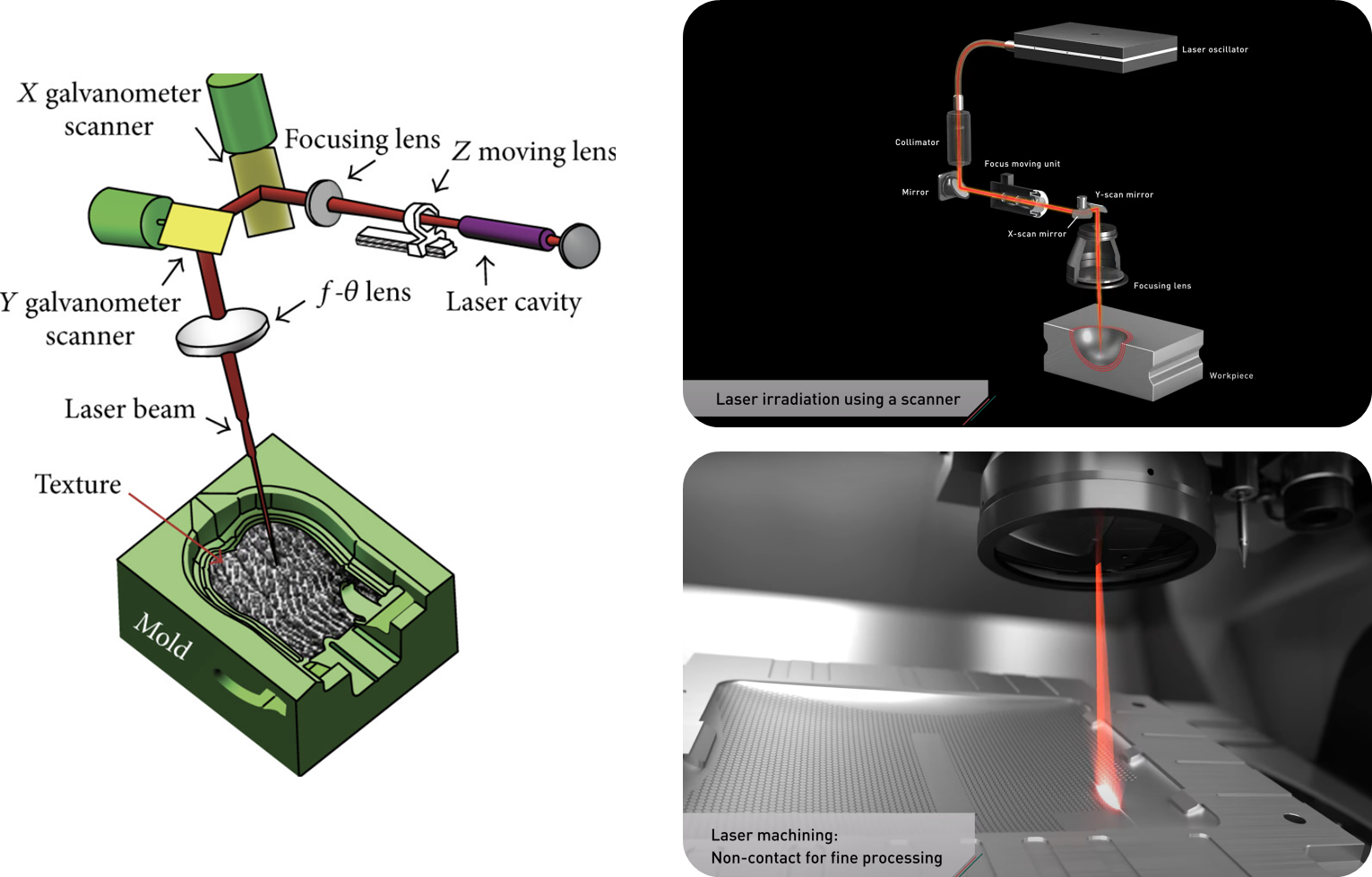

2. 5-axis laser micro engraving machine concept
3. Production case of nano pulse laser application
Specifications
[Machine & CNC] * 5Axis Machine (X, Y, Z, B, C) * 3+2Axis Mode * TCP & High Speed Machining Mode * CNC & Scanner Control Integration * Optimal Structure for Tire Side Plate * Large Size Working Area (to Φ1000) * User Friendly HMI * Soft and Hard OP with Touch Screen * CCDd Camera and Sensor for Setting Work Coordinates * Fume Collector and Blower |  |
[Machine & CNC] * Nano Pulsed Laser (20W ~ 100W), IPG * 3D Scanner (X, Y, Z), Scanlab * F-Theta Lens (120 X 120), Scanlab | |
[Operating System & Software] * A Dedicate CNC Controller (by CSCAM) * Scanner Interface * CAM System (CS_Laser3D by CSCAM) |
